Custom Layer

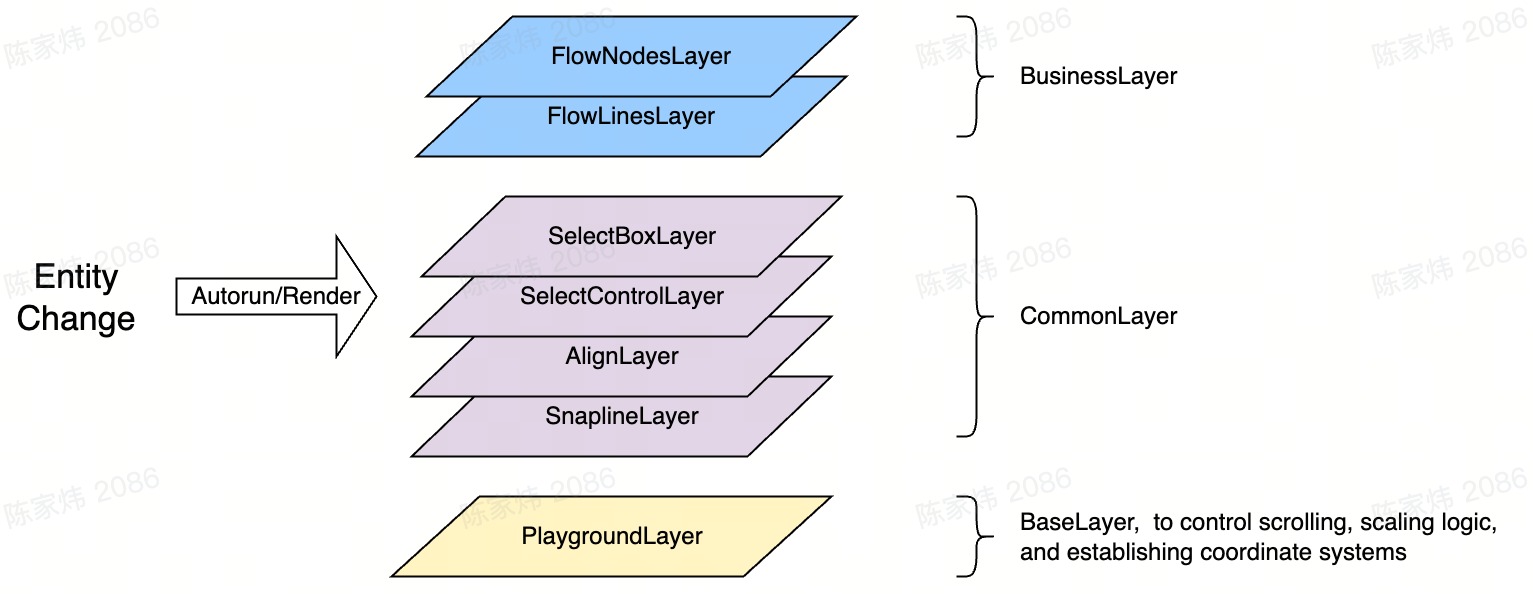

We split the canvas into multiple Layers, implementing the concept of interaction layering for better plugin management. For more details, see Canvas Engine

  1. Use observeEntityDatas, observeEntities, and observeEntity to monitor updates to any data module of canvas nodes
  2. Use onZoom, onScroll, onViewportChange, etc. to monitor canvas zooming or scrolling
  3. Use render to insert React elements into the canvas, such as drawing SVG lines

Aspect-oriented programming

Creating a Layer

import { FreeLayoutPluginContext, inject, injectable, FlowNodeEntity, FlowNodeTransformData, FlowNodeFormData } from '@flowgram.ai/free-layout-editor'

@injectable()
export class MyLayer extends Layer {
  @inject(FreeLayoutPluginContext) ctx: FreeLayoutPluginContext
  // Can monitor node width, height, and position changes
  @observeEntityDatas(FlowNodeEntity, FlowNodeTransformData) transformDatas: FlowNodeTransformData[];
  // Can monitor form data changes, connection data can be stored in forms
  @observeEntityDatas(FlowNodeEntity, FlowNodeFormData) formDatas: FlowNodeFormData[];
  onReady() {
    // Can also add styles
    // zIndex controls whether to overlay nodes, nodes default to 10, greater than 10 will be above nodes
    this.node.style.zIndex = 11;
  }
  onZoom(scale) {
    // Scale with canvas
    this.node.style.transform = `scale(${scale})`;
  }
  render() {
    return <div>{...}</div>
  }
}

Adding to Canvas

  • Through use-editor-props
{
  onInit: (ctx) => {
    ctx.playground.registerLayer(MyLayer)
  }
}
  • Through plugin
import { FreeLayoutPluginContext } from '@flowgram.ai/free-layout-editor'

export const createMyPlugin = definePluginCreator<{}, FreeLayoutPluginContext>({
  onInit: (ctx, opts) => {
    ctx.playground.registerLayer(MyLayer)
  },
});

Layer Lifecycle Description

interface Layer {
    /**
     * Triggered during initialization
     */
    onReady?(): void;

    /**
     * Triggered when playground size changes
     */
    onResize?(size: PipelineDimension): void;

    /**
     * Triggered when playground is focused
     */
    onFocus?(): void;

    /**
     * Triggered when playground loses focus
     */
    onBlur?(): void;

    /**
     * Monitor zoom
     */
    onZoom?(scale: number): void;

    /**
     * Monitor scroll
     */
    onScroll?(scroll: { scrollX: number; scrollY: number }): void;

    /**
     * Triggered when viewport updates
     */
    onViewportChange?(): void;

    /**
     * Triggered when readonly or disabled state changes
     * @param state
     */
    onReadonlyOrDisabledChange?(state: { disabled: boolean; readonly: boolean }): void;

    /**
     * Data updates automatically trigger React render, if not provided React rendering won't be called
     */
    render?(): JSX.Element
 }
